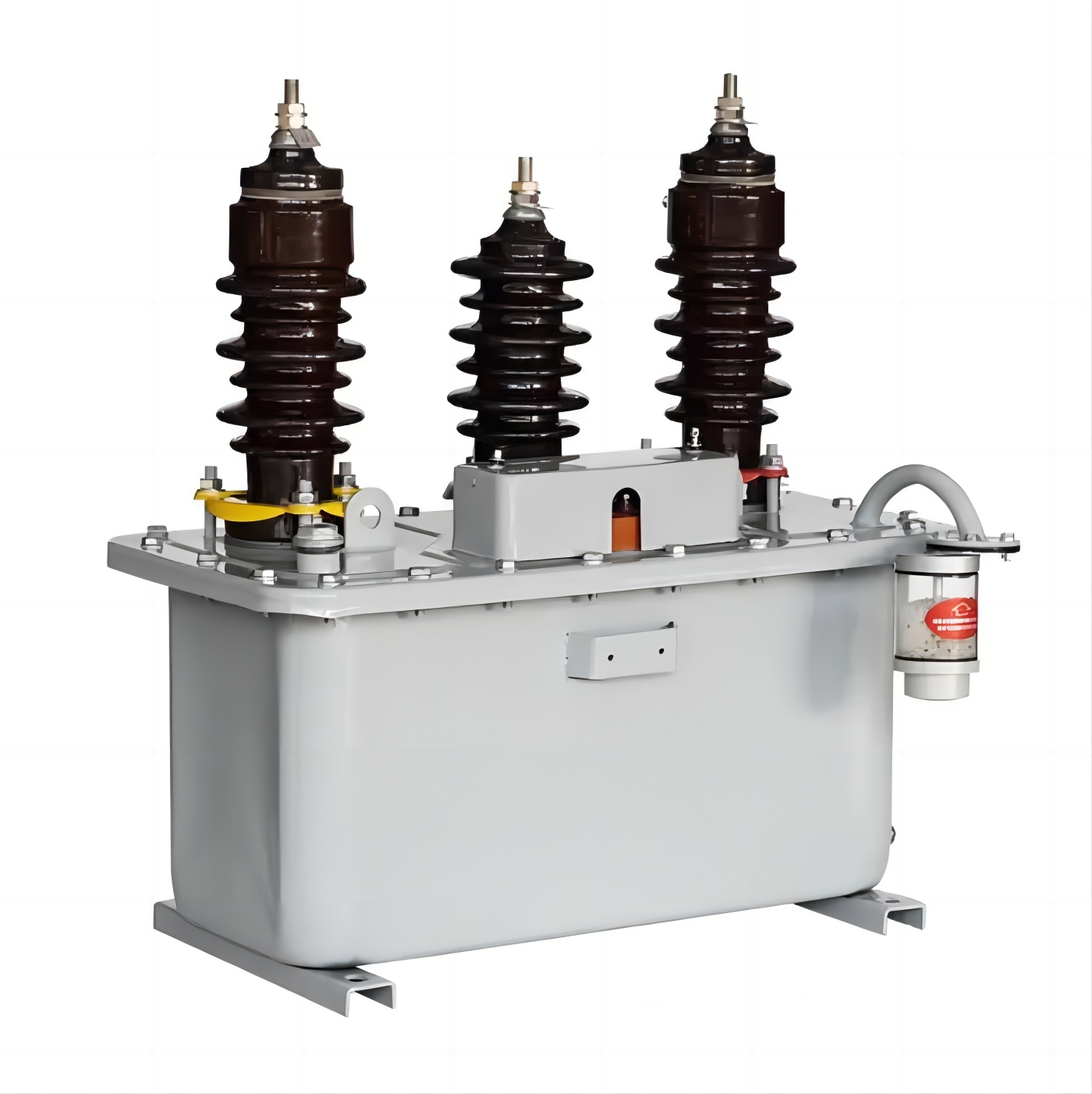

In the world of power metering and energy management, the JLS-10 outdoor oil-immersed metering box is a textbook example of efficiency and reliability. This high-voltage power metering box is specially designed for three-phase AC power grids with a rated voltage of 10kV and a frequency range of 50-60Hz. It is equipped with a three-phase three-wire combination transformer and is an ideal solution for power metering. Accurate power measurement and energy management.
Multifunctional application:
The JLS-10 outdoor oil immersed metering box is ideal for a variety of applications in various fields. Whether it is rural drainage and irrigation stations, township enterprises, processing plants, small and medium-sized factories, mining areas, transportation facilities, or infrastructure construction sites, this metering box ensures accurate energy measurement of high-voltage transmission lines in power supply stations. Furthermore, it is ideal for measuring the energy production of small power stations or for measuring the mutual transfer of electrical energy when connected to the main grid.
Outstanding design features:
The core of the JLS-10 outdoor oil-immersed metering box is the combined transformer. The transformer consists of two or three single-phase voltage transformers and current transformers. The metering box uses 25# transformer oil as the insulating medium to ensure the effectiveness and stability of electric energy measurement. Primary and secondary outlet terminals with porcelain sleeves are conveniently located on the panel. In addition, the metering box also has an electric meter box, consisting of a main meter and a reactive power meter, which are seamlessly integrated with the combined transformer to form a comprehensive power measurement solution.
Enhanced performance:
The JLS-6/10 metering box is an innovation that surpasses its predecessors in performance and durability. This upgraded version adds a moisture-proof device to the fuel tank cap, which effectively prevents moisture from entering the oil and extends the service life of the product. Its excellent capacity, compact size, lightweight design and ease of installation make it the first choice for power metering applications. In addition, its high measurement accuracy and anti-electricity theft function make the JLS-6/10 metering box a reliable and safe power management solution.
in conclusion:
When it comes to accurate power measurement and reliable energy management, the JLS-10 outdoor oil-immersed metering box with three-phase three-wire combination transformer leads the way. Designed for 10kV rated voltage and 50-60Hz frequency, this multifunctional metering box can meet a variety of applications and ensure accurate energy measurement. With its improved design and enhanced performance, this metering box is the solution of choice for power stations, processing plants, infrastructure construction sites and more. Buy the JLS-10 outdoor oil-immersed metering box now and experience unparalleled power measurement capabilities.
